Worldinmfg can provide most competitive H2SO4 & Soda Mechanical Diaphragm Dosing Pump, which include dc diaphragm air pump,diaphragm booster pump,diaphragm hand pump, can be your choice

H2SO4 & Soda Mechanical Diaphragm Dosing Pump

  • H2SO4 & Soda Mechanical Diaphragm Dosing Pump
  • H2SO4 & Soda Mechanical Diaphragm Dosing Pump
  • H2SO4 & Soda Mechanical Diaphragm Dosing Pump
  • H2SO4 & Soda Mechanical Diaphragm Dosing Pump

H2SO4 & Soda Mechanical Diaphragm Dosing Pump

Unit Price: FOB   |  Get Latest Price

Model No.: JXM-A
Min. Order: 10 Bag/Bags
Payment Type: L/C,T/T
Transportation: Ocean,Air
Productivity: 2000piece/month
Packaging: Strong carton suitable for long distance sea transportation
Delivery Time: 10 Days
Place of Origin: Zhejiang, China (Mainland)
Brand: AILIPU
Supply Ability: 2000


Ms.LUO TING
Administrative

Product Description


Product Description: Prepared

1. Check and confirm whether the pump is installed solidly with the base, whether the pipeline installation is correct and whether the outlet pipeline is open or not. If no lubricating oil is provided, enough lubricating oil should be filled into the pump. The oil dosage of JXM-A type pumps is 650m and that of the JZM-A is about 3.2L. Users are suggested to better fill Mobil gear 600xp220.

2. It is strongly suggested not to operate the pump at a temperature lower than -10℃.

3.Put the flow adjusting handle at zero graduation before turning on the pump and check the inlet & outlet pipelines before adjusting the handle from zero to a higher graduation so as to ensure that all shut-off valves are open.

4. Start the metering pump and check whether the turning direction of the electric motor is the same as the arrowhead on the flange (observing from the vane wheel is clockwise). If the direction is incorrect, the connection method should be changed.

l/h

  (Mpa)



(mm)

(mm)

(KW)

(KG)

JXM-A 2.25/1.2

2.25

1.2

36

1.2

DN8

0.37KW

18

JXM-A 4.5/1.2

4.5



JXM-A 9/1.2

9

144

JXM-A 22/1.2

22

72

4

DN15

JXM-A 44/1.2

44

144

JXM-A 85/1.0

85

1

72

6

JXM-A 120/0.7

120

0.7

72

8

JXM-A 170/0.7

170

144

6

JXM-A 240/0.7

240

144

8

DN25

JXM-A 315/0.5

315

0.5

144

8

0.55KW

JXM-A 400/0.5

400

144

10

JXM-A 500/0.5

500

180

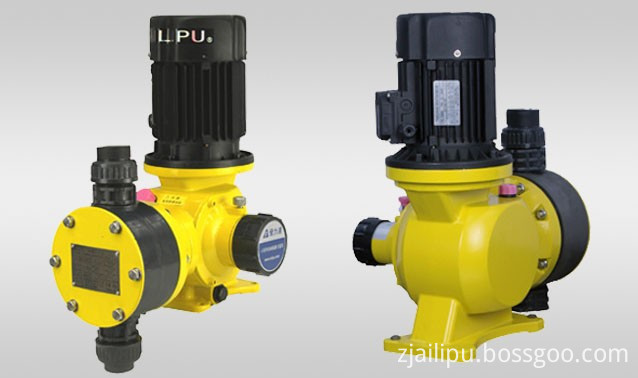

Mechanical diaphragm Dosing Pump


Products Show
Mechanical diaphragm Dosing Pump
Mechanical diaphragm Dosing Pump

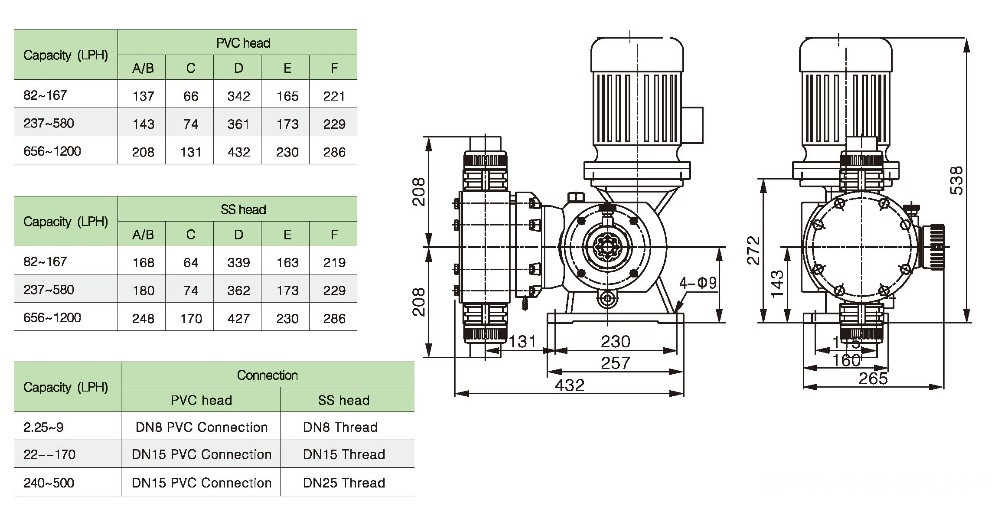

Technical Specifications

* Flow rates up to 500L/H, pressure up to 12Bar
* Adjustment of flowrate from 0% - 100% while running or stopped
* Accuracy +/- 2% of 100% rated flow
* Mechanically actuated PTFE diaphragm
* Maximum temperature of pumped fluid: +10℃ - 40℃
* Maximum suction up to 2M

Features & Benefits

* Mechanical actuated diagragm design, easy operation and with the convenience maintanence
* Changeable eccentric drive, no leakage with security delivery
* Rugged construction designed to withstand tough environments
* Oil bath lubrication for all of drive components

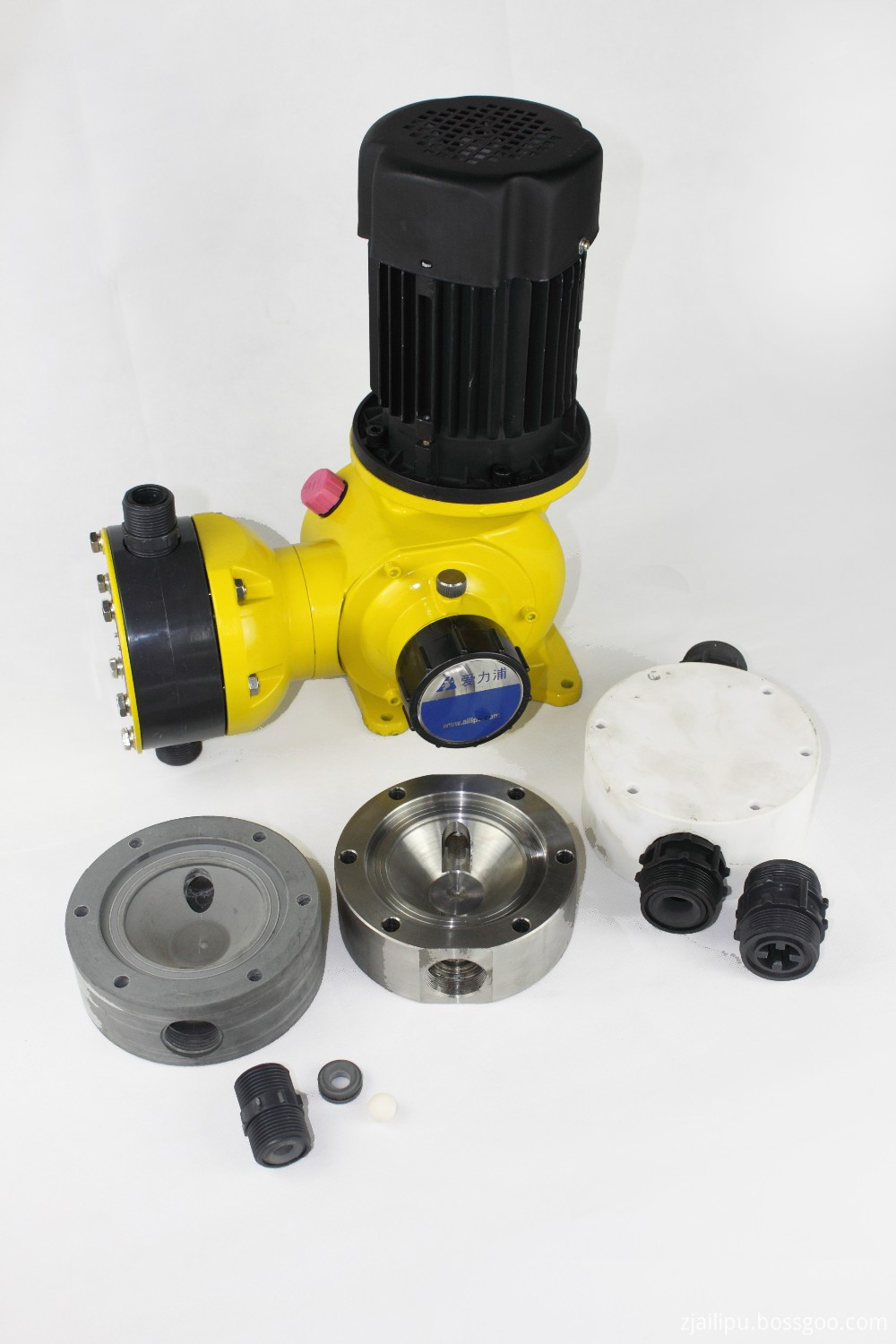

* Various pump head material (PVC, PVDF, SS304, SS316 etc.) to meet different solution needs
* Available with the manual control and digital control model

Control

* Manual stroke adjustment
* Stroke actuator with 4-20mA signal
* Digital controller with 4-20mA signal

Our Company

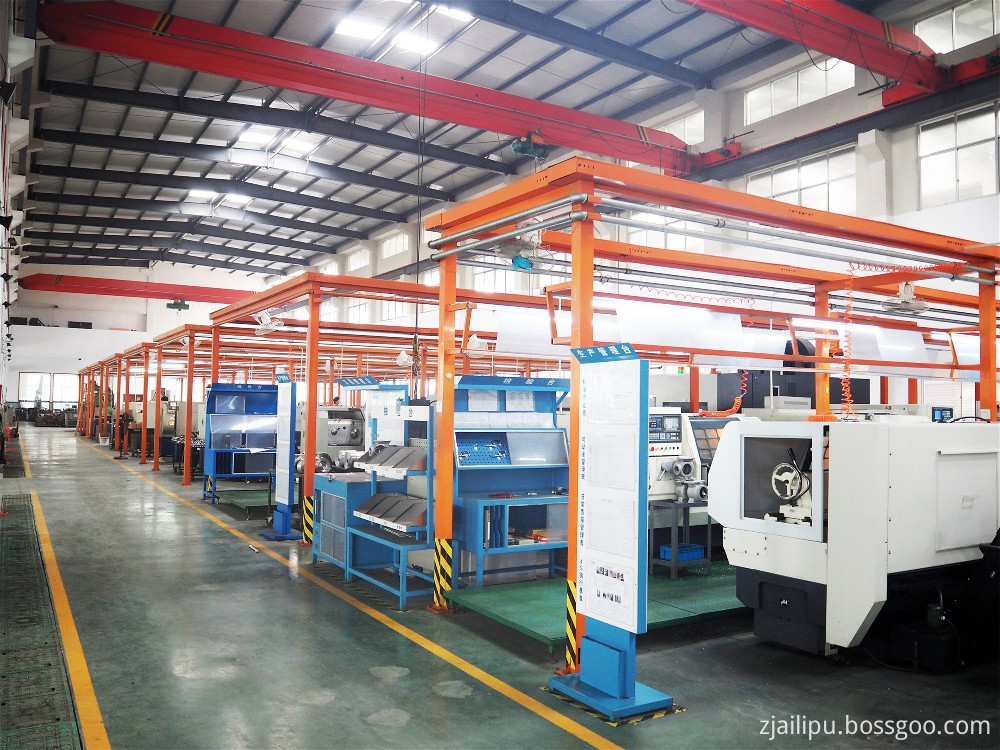

Dosing Pump workshopDosing Pump workshop
Dosing Pump Company
Our Certifications
Dosing Pump CertificateDosing Pump CertificateDosing Pump CertificateDosing Pump Certificate
Customer Photo
Dosing Pump ExhibitionDosing Pump Exhibition
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, and our factory has the independent research and development capacity

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer sample but it must be paid

Q: What is your terms of payment ?

A: TT, LC. etc.....
